PROFILE FLEXIBLE POST FORMING MASSIVE STRENGTHENED
Aplication
FINISHING FURNITURE EDGES
Unit of Measure
METTER
Packaging Form
BOBBIN
Raw Material
FLEXIBLE
Budget Request
slide with your fingers to see more photos.
For color table, refer directly to the factory.

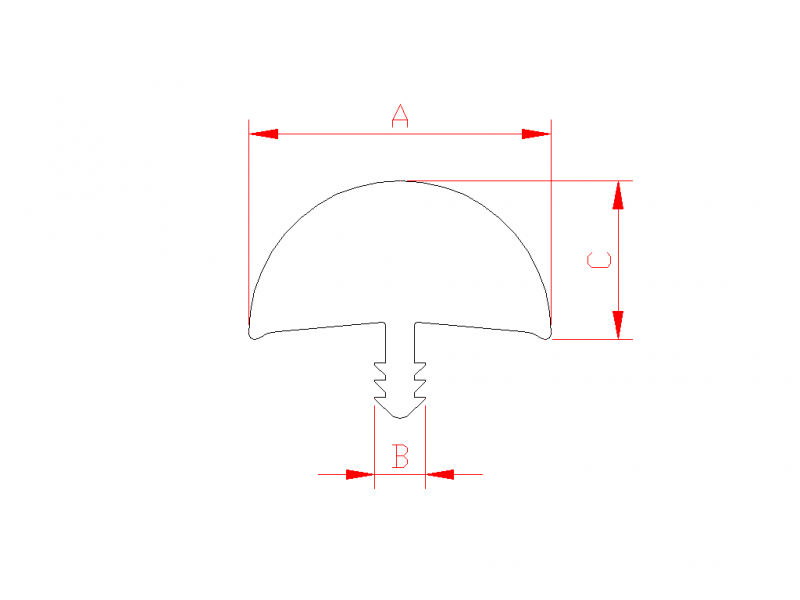

Measuring Table
| Code | Measures (mm) | ||
|---|---|---|---|
| A | B | C | |
| 1229001 | 32,0 | 10,0 | 17,0 |
Tolerance Table
| Measures (mm) | Tolerances (mm) |
|---|---|
| 1 à 30 | ±0,2 |
| 30 à 60 | ±0,3 |
| 60 à 150 | ±0,4 |
| 150 à 300 | ±0,5 |
| 300 à 1000 | ±1,00 |
| 1000 à 2000 | ±2,00 |
| 2000 à 6000 | ±3,0 |
