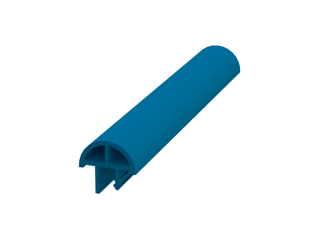

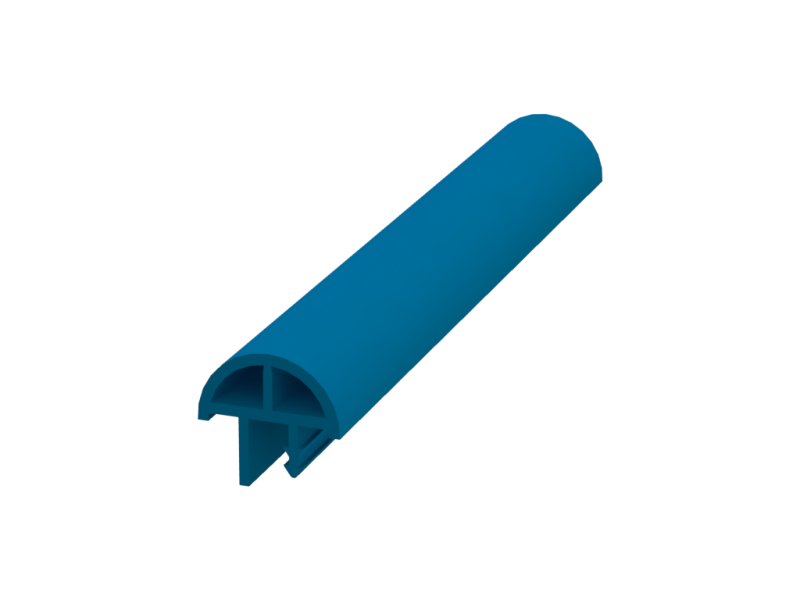

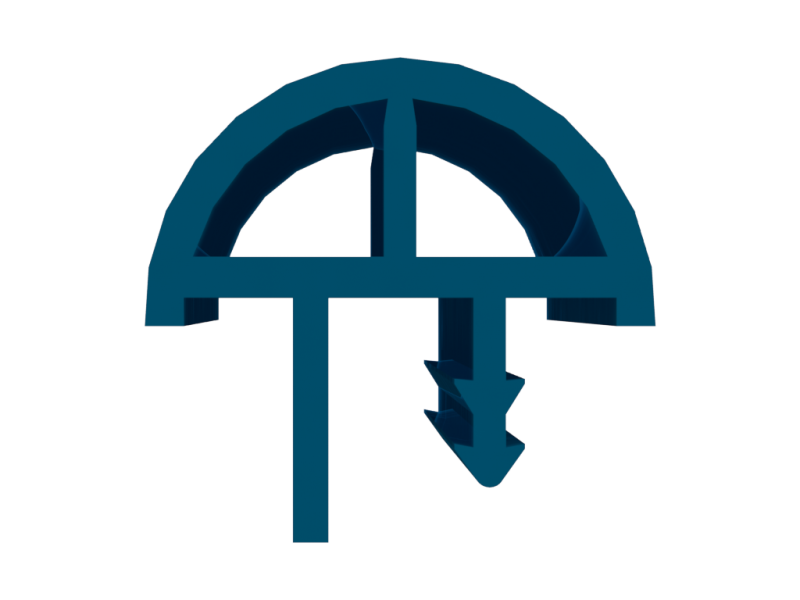

POST PROFILE FORMING T-27 FALSE
Aplication
EDGES OF TABLETOPS
Unit of Measure
METTER
Packaging Form
REEL
Raw Material
PVC FLEXIBLE
Budget Request
slide with your fingers to see more photos.
For color table, refer directly to the factory.

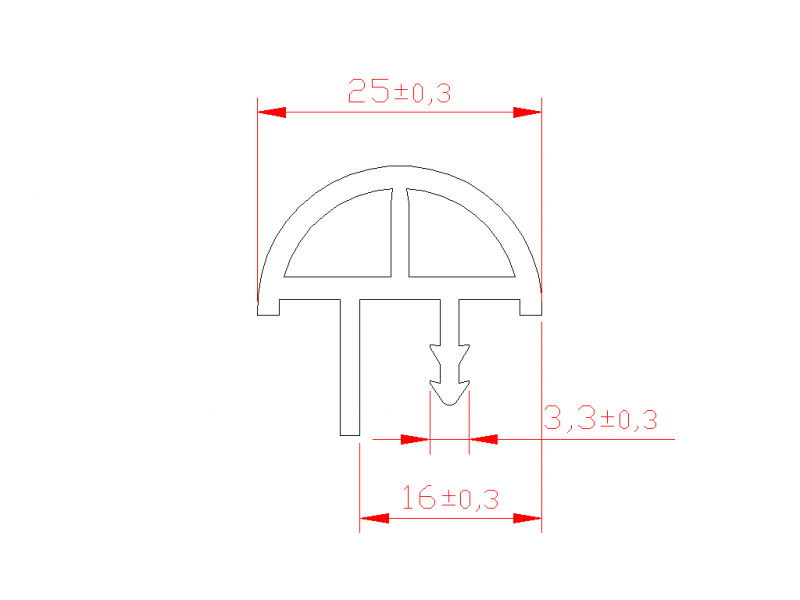

Measuring Table
| Code | Measures (mm) | ||
|---|---|---|---|
| A | B | C | |
| 1062001 | 29,0 | 2,6 | 16,0 |
| 1062002 | 30,0 | 2,6 | 16,0 |
| 1062003 | 31,0 | 2,6 | 16,0 |
| 1062004 | 32,0 | 2,6 | 16,0 |
| 1062005 | 35,0 | 3,0 | 18,0 |
| 1179006 | 25,0 | 2,8 | 16,0 |
Tolerance Table
| Measures (mm) | Tolerances (mm) |
|---|---|
| 1 à 30 | ±0,2 |
| 30 à 60 | ±0,3 |
| 60 à 150 | ±0,4 |
| 150 à 300 | ±0,5 |
| 300 à 1000 | ±1,00 |
| 1000 à 2000 | ±2,00 |
| 2000 à 6000 | ±3,0 |
